Manufacturing process of OLED 2024 edition

¡Explain OLED manufacturing process by illustration
¡Full-cover from basic process to next generation process

¡Cover structure, substrate, material, manufacturing process, and encapsulation method
¡Indicate molecule structure of organic material
¡Cover 3D technology of with and without glasses method

¡Easy to look at the file using any PC because of the format of browser, for example IE (Internet Explorer)
¡Possible to access at will from Index Page to detail page
¡Describe these illustrations at 3D image
¡Number of total file are 84 (about 240 page in A4 form equivalent)
¡Illustrations of device structure and process flow are approximately 560.


MAIN CONTENT

Basic structure of OLED
¡Hetero junction device
Small molecular
@ Fluorescence device (Standard)
@ Fluorescence device with hole injection layer
@ Fluorescence device (Alkali doped type)
@ Phosphorescence device

Polymer device
@ Fluorescence device (Standard)
@ Fluorescence device with interlayer
@ Phosphorescence device

Hybrid device of small molecular and polymer

¡Homo junction device

¡Structure example of long life device
Boundary-less device
Alloying device

¡Multi photon mission (MPE) device

Hybrid device
¡Hybrid device of OLED and organic film solar cell
¡Hybrid device of PDLC, OLED, and organic film solar cell
¡Mirror display
¡Transparent OLED { e-paper hybrid module

3D technology
¡Method to use a specific glasses
LC shutter glasses method (Time sequential method)
Polarized glasses { patterned phase difference film (Space division method)

¡Specific glasses-free method
Parallax barrier method
Time sequential driving { parallax LC barrier method
Lenticular lens method

Kind and manufacturing process flow of OLED panel (general theory)

¡Small molecular panel
@ R, G, B independent type PM-OLED
@ R, G, B independent type AM-OLED

@ CF { microcavity R, G, B independent type AM-OLED
@ CCM type PM-OLED
@ CCM type AM-OLED
@ CCM type AM-OLED (Inverted top emission panel)
@ CF type PM-OLED
@ CF type AM-OLED
@ COA type AM-OLED

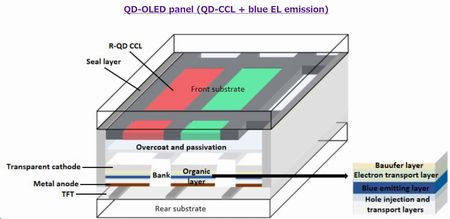

@QD-AM-OLED

¡Polymer panel
@ R, G, B independent type PM-OLED
@ R, G, B independent type AM-OLED

¡Assembled panel

¡Single substrate panel (Thin film encapsulation)

¡Single substrate panel (Solid encapsulation)

Pocess flow of OLED (particular theory)
@@
¡Forming process of transparent anode
¡Forming process of bus electrode

¡Forming process of insulator layer
¡Forming process of cathode-separator
¡Forming process of bank

¡Forming process BM (black matrix)
¡Forming process of CF
¡Forming process of CCM layer
¡Forming process of QD-CCL

¡Deposition process of passivation layer
¡Manufacturing process of overcoat layer

¡Forming process of electron injection layer
¡Forming process of small molecular emitting layer
¡Forming process of blue emitting layer of CCM panel
¡Forming process of white emitting layer of CCM panel and CF panel
¡Forming process of polymer emitting layer

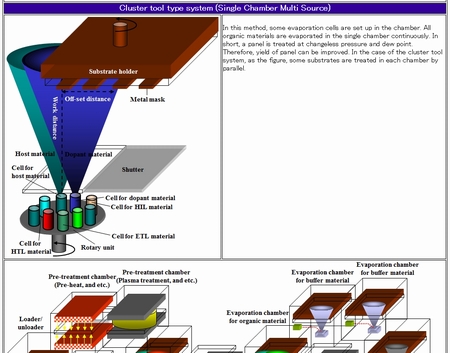

@ Kind of evaporation cell
@@
¡Forming process of alkali buffer layer/alkali doping layer
¡Forming process of hole transporting layer
¡Forming process of electron transporting layer/hole blocking layer
¡Forming process of hole injection layer
¡Forming process of interlayer

¡Forming process of metal cathode of PM panel
¡Forming process of cathode of the dual emission panel
¡Forming process of co-cathode and pixel electrode (Top emission panel)

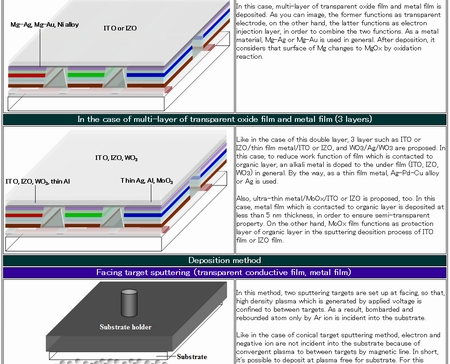

¡Forming process of transparent cathode

¡Forming process of TFT
Manufacturing process of LTPS-TFT
Manufacturing process of IGZO-TFT
Manufacturing process of ƒÊC-Si TFT
Manufacturing process of a-Si TFT
Manufacturing process of CGS-TFT
Manufacturing process of the bottom gate/top contact structure organic TFT
Manufacturing process of the bottom gate/bottom contact type organic TFT
Manufacturing process of the top gate structure organic TFT

¡Seal layer forming process
¡Encapsulation process by flat glass
¡Encapsulation process by cap glass
¡Thin film encapsulation process of single substrate panel
¡Solid encapsulation process of single substrate panel
¡Scribe and break process
¡Making panel thinner process

¡A word of caution in manufacturing of OLED with flexible substrate
Case of using flexible substrate with film shape
OLED is manufactured on original substrate, and then transferred to plastic filmResin is coated on support substrate and cured, and then, TFT and OLED are manufactured on resin film, finally, support substrate is released (The resin film is used as substrate)


£Device structure

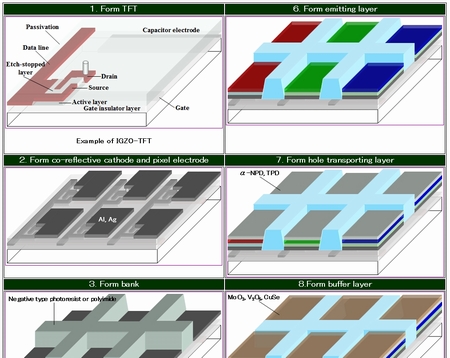

£Process flow of AM-OLED (Top emission panel)


£Evaporation process


£Layer structure of transparent cathode

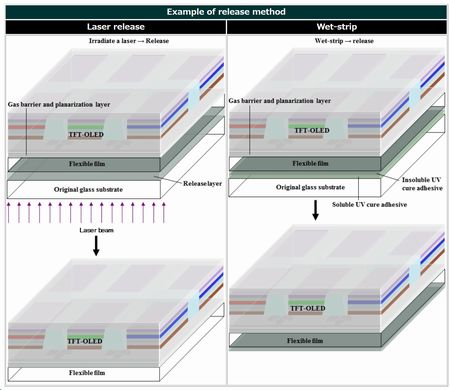

£Release process of flexible substrate

Full-original CD-ROM

CD-ROM for Windows • Macintosh
PriceF23,000 yen
Release dateFJanuary 4, 2024

While you order this CD-ROM, please input below points and send to info@e-express.co.jp.

CD-ROMFOLED manufacturing process
Campany's NameF
SectionF
NameF
AddressF
TELF
FAXF
e-mail addressF

Remark

If you are domestic customer, we will send the product and invoice. Please pay to ours account by bank remittance until specified date.

If you are overseas customer, we will send E-mail to you. Please pay to ours account by bank remittance. If we confirm bank transfer, we send the product immediately.


E Express Inc.
TELF+81-90-4203-4633(Kameya(President))
E-MailFinfo@e-express.co.jp

CD-ROM lists of English virsion

¡Manufacturing process of LTPS-TFT-LCD ¡Manufacturing process of oxide-TFT-LCD
¡Manufacturing process of a-Si TFT-LCD ¡Manufacturing process of oxide-TFT
¡Manufacturing process of OLED ¡Manufacturing process of OLED lighting device
¡Manufacturing process of organic film solar cell ¡Manufacturing process of E-paper display
¡Manufacturing process of FEL ¡Manufacturing process of organic-TFT
¡Manufacturing process of CNT-TFT ¡Manufacturing process of Perovskite solar cell
